Low-Profile Belt Conveyor

Standard Widths 6", 12", 18", 24"

V-Guided Lowprofile Conveyor

About MCE Guided Low-Profile Conveyor

MCE’s low-profile belt conveyor is commonly used in applications where space is limited, such as manufacturing facilities, assembly lines, and packaging operations. The key characteristic of MCE’s low-profile belt conveyor is its compact design, which allows it to fit into tight spaces or be integrated into existing machinery. Low-profile belt conveyors are often equipped with adjustable legs or casters, allowing for easy mobility and flexible positioning within a workspace.

MCE's low-profile belt conveyor can include options such as adjustable speed controls, various types of belting surfaces to accommodate different product characteristics and a guide track to ensure belt alignment.

Adding a "V" groove to the belt bed and a v-guide to the bottom of the belt, the system is consistently centered, and belt edge-wear is reduced. Belt wandering, miss-tracks and friction will also be minimized reducing inconvenience maintenance and costs.

Low-profile belt conveyors are available in standard widths of 6", 12", 18", and 24" with a maximum length of 15 feet. If a longer pull section is needed for your operations we recommend using flat belt conveyors


  • Space-saving design
  • Versatility in product handling
  • Smooth and quiet operation
  • Easy maintenance
  • Efficient and consistent movement
  • Easy integration
  • Cost-effective
  • Photos

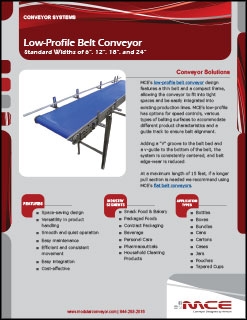

  • Documents
  • Illustration
  • Industries
  • Applications

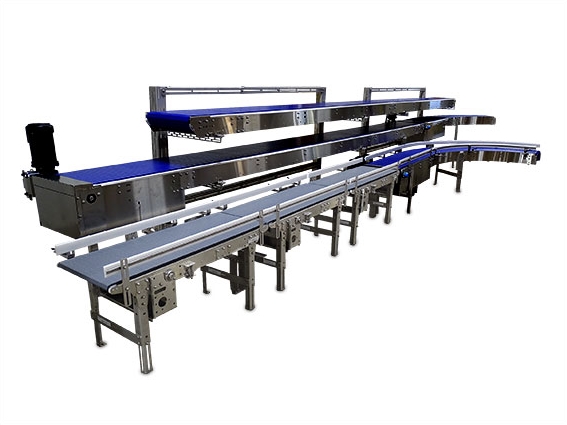

Low-Profile Belt Conveyor

Cans on Low-Profile Conveyor

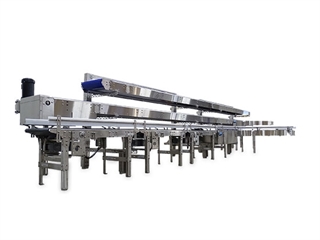

Low Profile Conveyor

V-Guided Low-Profile Conveyor

  • Bottles
  • Boxes
  • Bundles
  • Cans
  • Cartons
  • Cases
  • Jars
  • Pouches
  • Tapered Cups

Easy Installation

MCE conveyor solutions are extremely streamlined. MCE ships conveyor projects in assemblies with drives, reducers, wearstrips, returns, guide-rails and brackets already installed. Bolting the assemblies together, installing the chain and fine tuning guide-rails to fit the product or package are the only on site installation steps required, making MCE coneyor solutions capable of maximizing productivity at no expense of extra resources.
